$45
Part No. PA65-2746
Cylinder Piston assembly with seals included.
U.S. shipping and import duties: $25 per assembly. Charges are added for each item.
Fits:
LS: LB1100 / LB1104 / LB1107 / LL5100 / LL5102 / LL5103 / LL5104 / LL5105 / LL5106 / LL6100 / LL7100 / LL7101
KIOTI: KL5510
CASE IH: BH80 / BH80S
NH: 905GBL / 910GBL
Fits the cylinder versions listed below. Match the cylinder reference and measurement photos before ordering.
| Brand / Model | Cylinder application | Cylinder reference |
|---|---|---|
| LS / LB1100 | Dipperstick Cylinder Ass'y | 40340572 |
| LS / LL6100 | Bucket Cylinder Ass'y | 40350484 |
| KIOTI / KL5510 | Boom Cylinder Ass'y | 22E801 |
| LS / LL5104 | BOOM CYLINDER ASS'Y | 40287426 |
| LS / LL5105 | BOOM CYLINDER ASS'Y | 40287426 |
| LS / LB1107 | Bucket Cylinder Ass'y | 40361147 |
| LS / LB1107 | Boom Cylinder Ass'y | 40361148 |
| LS / LB1104 | Dipperstick Cylinder Ass'y(NEW) 160122090~ | 40357498 |
| LS / LB1107 | Dipperstick Cylinder Ass'y | 40357498 |
| LS / LB1107 | Swing Cylinder Ass'y | 40358834 |
| LS / LL5100 | BOOM CYLINDER ASS'Y | 40264172 |
| LS / LL5100 | BUCKET CYLINDER ASS'Y-LH | 40246132 |
| LS / LL5102 | Bucket Cylinder Ass'y | 40286948 |
| LS / LL5103 | Bucket Cylinder Ass'y | 40286948 |
| LS / LL5106 | Bucket Cylinder Ass'y | 40286948 |
| LS / LL5102 | Bucket Cylinder Ass'y (OLD)RH ~120601 | 40246136 |
| LS / LL5102 | Bucket Cylinder Ass'y (OLD)LH ~120601 | 40246133 |
| LS / LL7100 | Bucket Cylinder Ass'y RH | 40241241 |
| LS / LL7101 | Bucket Cylinder Ass'y RH | 40241241 |
| LS / LL7100 | Bucket Cylinder Ass'y LH | 40241240 |
| LS / LL7101 | Bucket Cylinder Ass'y LH | 40241240 |
| CASE IH / BH80 | Dipperstick Cylinder | 40340572 |
| NH / 910GBL | Dipperstick Cylinder | MT40378370 |
| CASE IH / BH80S | Dipperstick Cylinder | 40357498 |
| NH / 905GBL | Dipperstick Cylinder | MT40377992 |
| CASE IH / BH80S | Swing Cylinder | 40358834 |
| CASE IH / BH80S | Boom Cylinder | 40361148 |
| CASE IH / BH80S | Bucket Cylinder | 40361147 |
| NH / 905GBL | Swing Cylinder | MT40377996 |
| NH / 905GBL | Boom Cylinder | MT40377993 |
| NH / 905GBL | Bucket Cylinder | MT40377991 |
Availability: 1 in stock

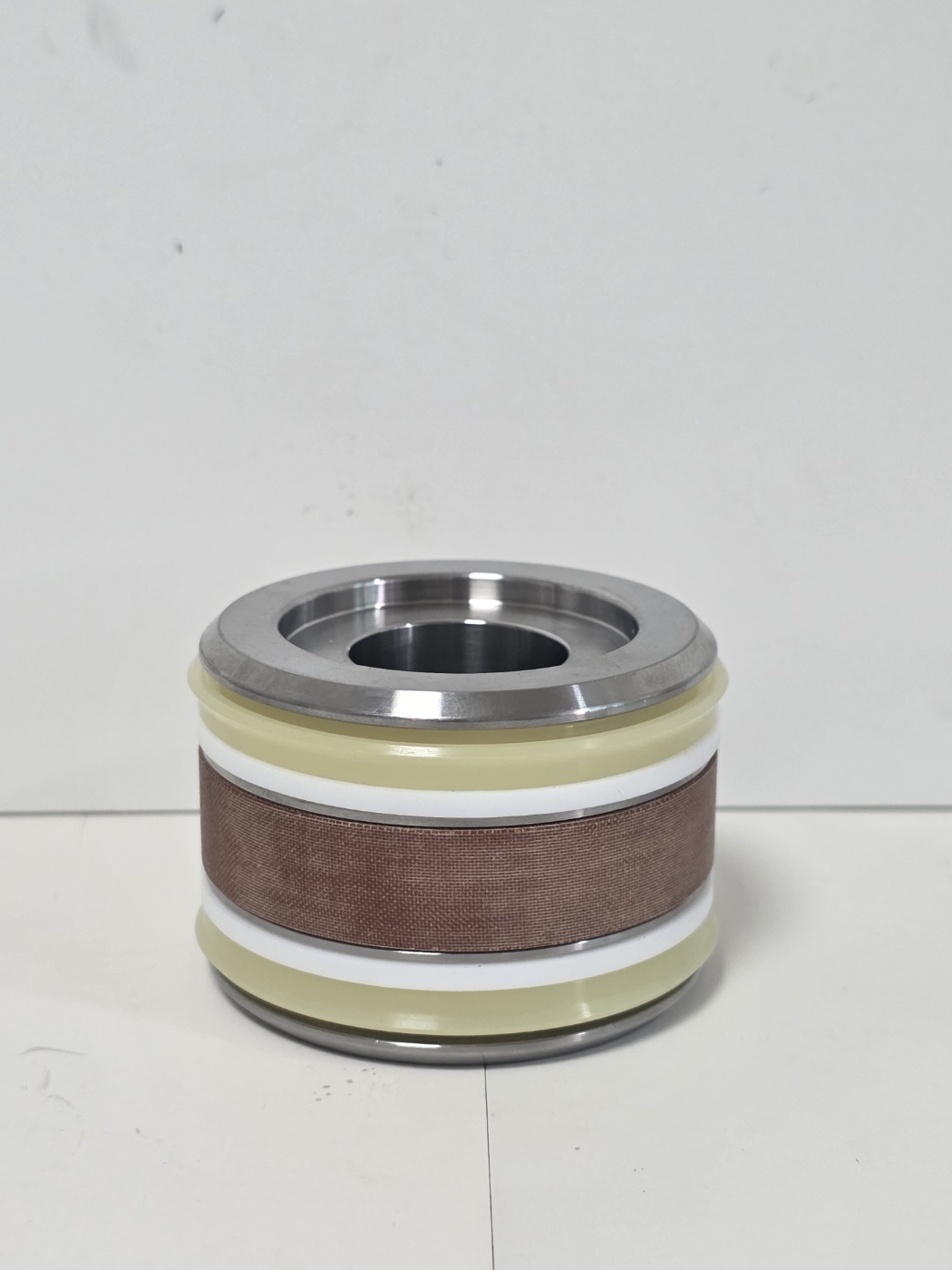

Includes one metal piston assembly and its seals as shown in the product photos.
Use the serial-number or Cylinder Lookup to match your cylinder. Confirm the part number and compare the dimension photos before ordering.

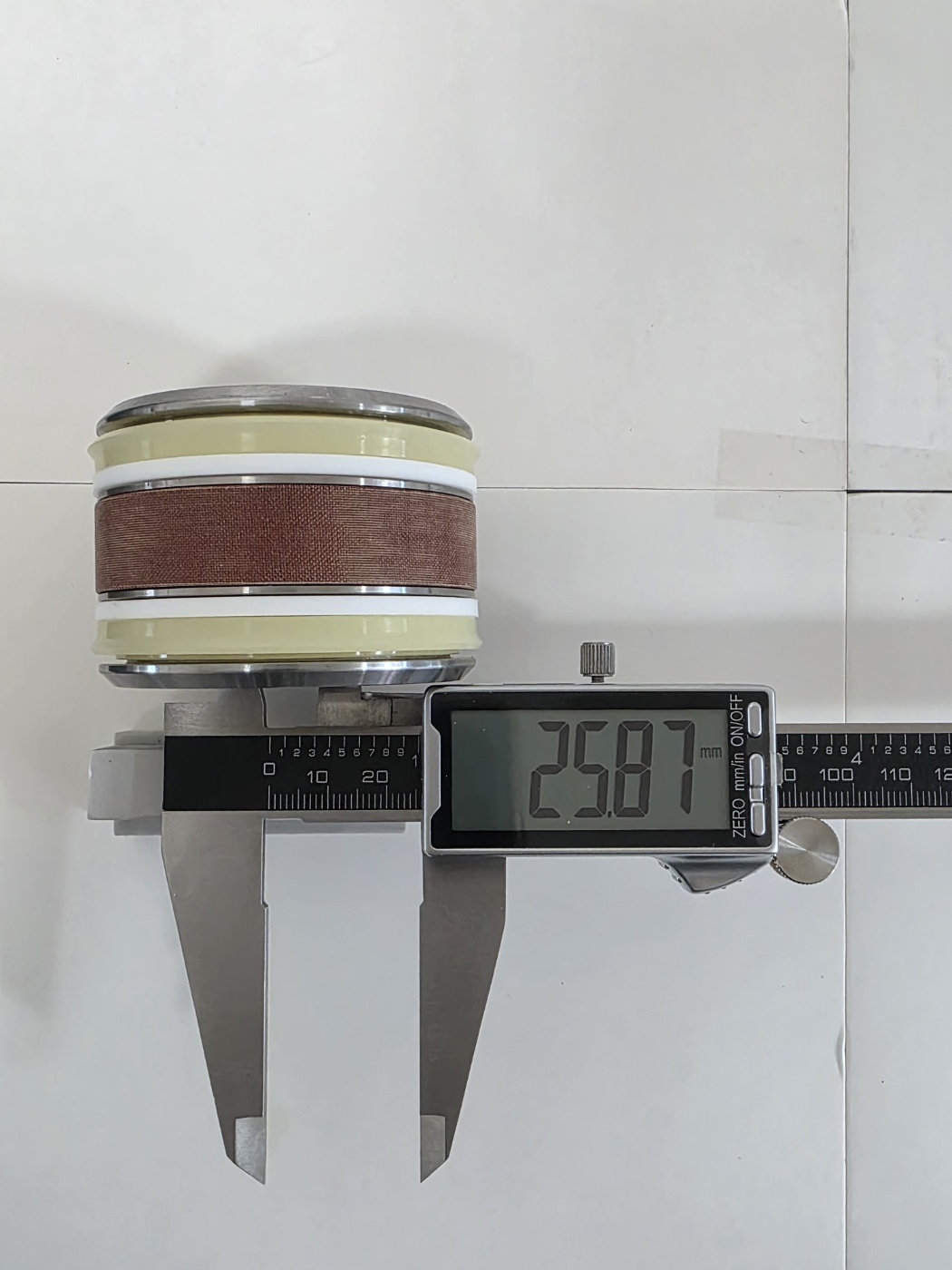

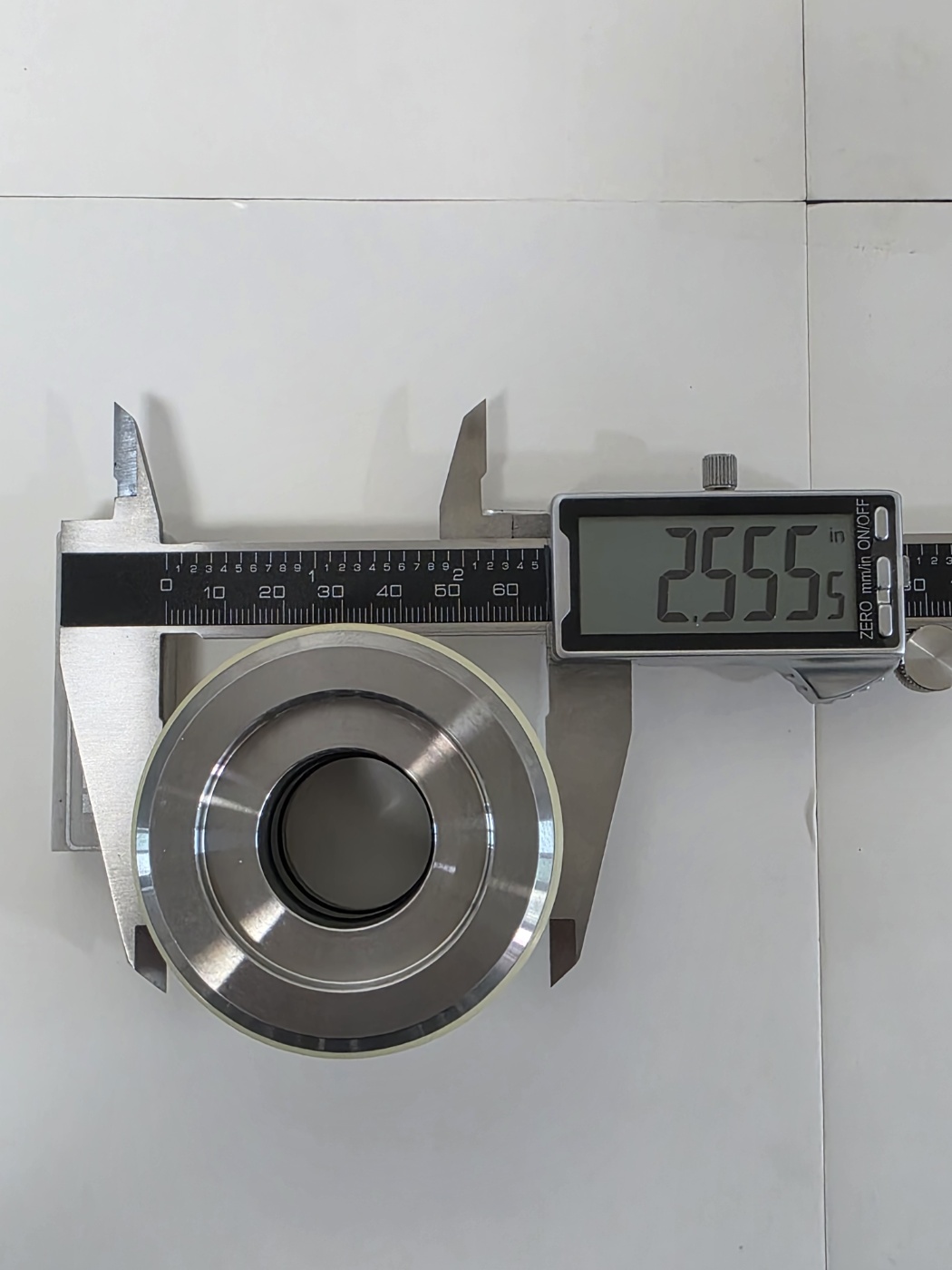

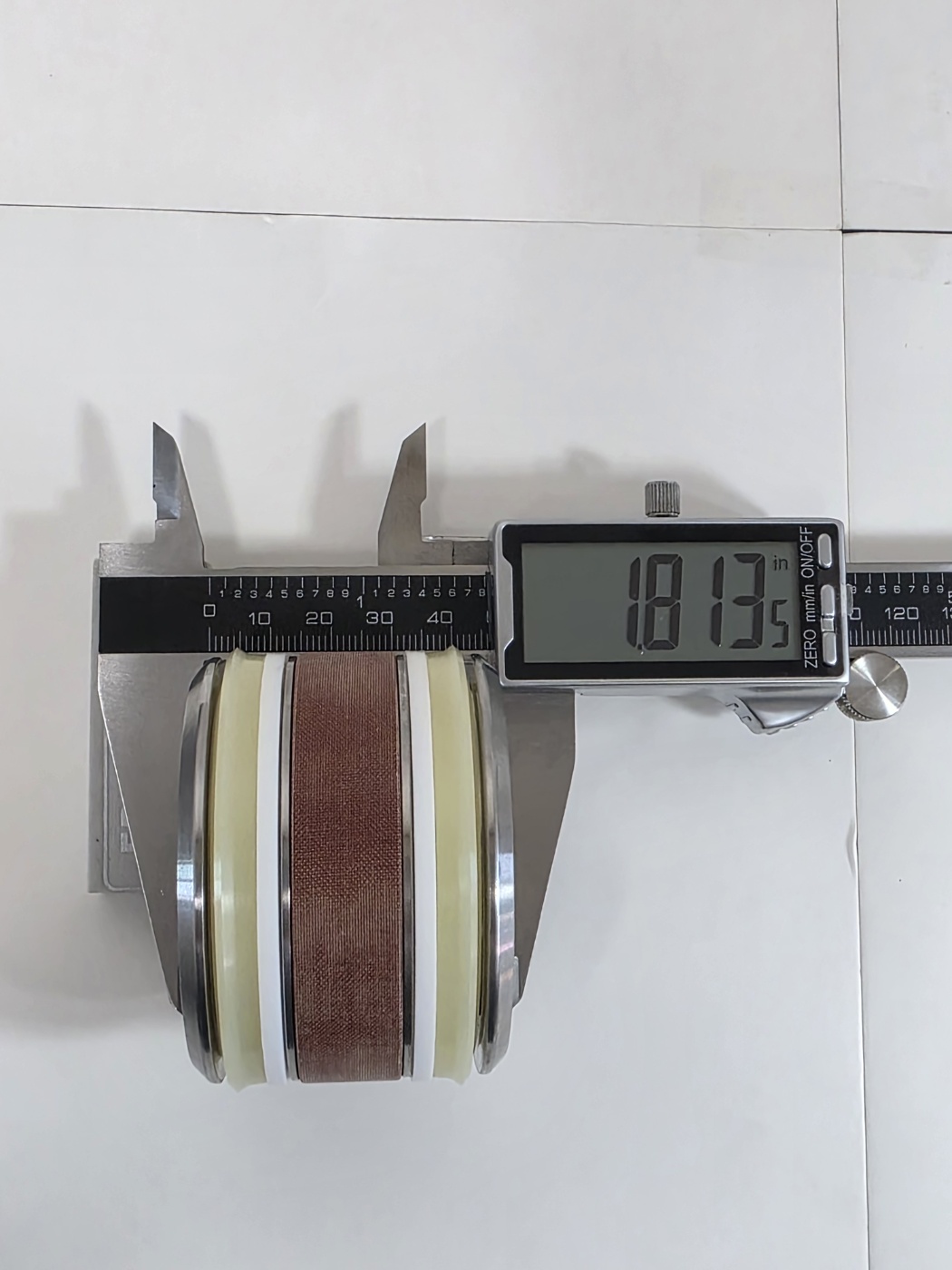

The gallery includes the actual assembly and length, inner diameter, and outer diameter measurement photos.
U.S. shipping and import duties are $25 per assembly. Head/gland and piston assemblies are sold separately.
| Weight | 0.75 kg |
|---|---|
| Part Number | PA65-2746 |
